  • 21320 CAMKE4: Spherical Rol...
21320 CAMKE4: Spherical Roller Bearing

21320 CAMKE4 Roller Bearing ia an mechanical component designed to facilitate the smooth rotation of a shaft by reducing friction between moving parts. They consist of Cylindrical or Tapered Rollers that are placed between two concentric rings, known as races. As the bearing rotates, the rollers distribute the load evenly, al...

Read more about 21320 CAMKE4: Spherical Roller Bearing
Roller Bearing

21320 CAMKE4: Spherical Roller Bearing

d: 100mm D: 215mm B: 47mm, Wt: 8.83 Kg

£ 263.40 ex VAT

Brands

Brand Price (ex VAT) Quantity Action
Premium £ 263.40 ex VAT

Additional Information

Quick Find ZX14679
Stock Ref 21320 / CAMKE4
Category Spherical Roller
Description 21320 CAMKE4: Spherical Roller Bearing
Weight 8.826 kg
Bore 12)
Cage Brass cage
Category Spherical Roller Bearings
Clearance Normal radial clearance
Material Standard bearing steel
Outer Ring Lubrication groove with lubrication holes on outer ring
Seal None, open bearing
Temp Range -30 to +200 °C
Version Standard version
Int Ref 3/176/188/0/10081551
  Principal dimensions

d
mm
Principal dimensions

D
Principal dimensions

B
Basic load ratings
dynamic
C
kN
Basic load ratings
static
C0
Fatique load limit

Pu
kN
Speed ratings
Reference speed

r/min
Speed ratings
Limiting speed

Designation


mm
in

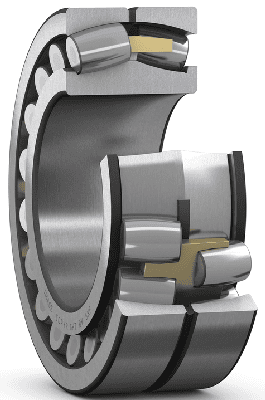

Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance
